| Product Name：Three Sides Shielding All-in-one Desktop | Model：ROV-R303 | Material：Spray-paint Sheet Metal |
| Weight：≥30KG | Size：External Size 680*590*612mm Internal Size 600*500*300mm | Working Frequency：840MHz ~ 960MHz |

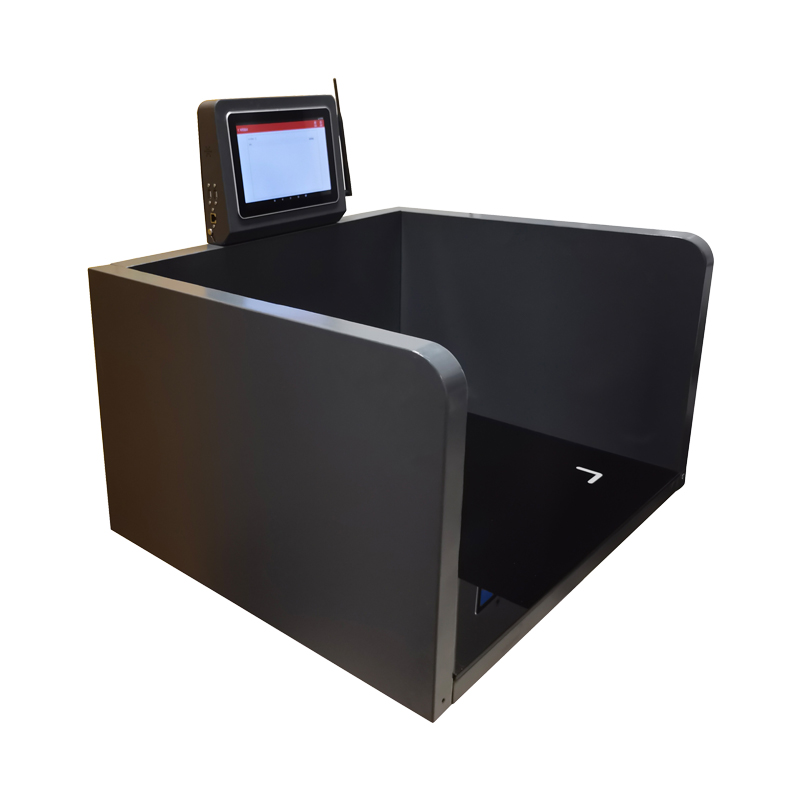

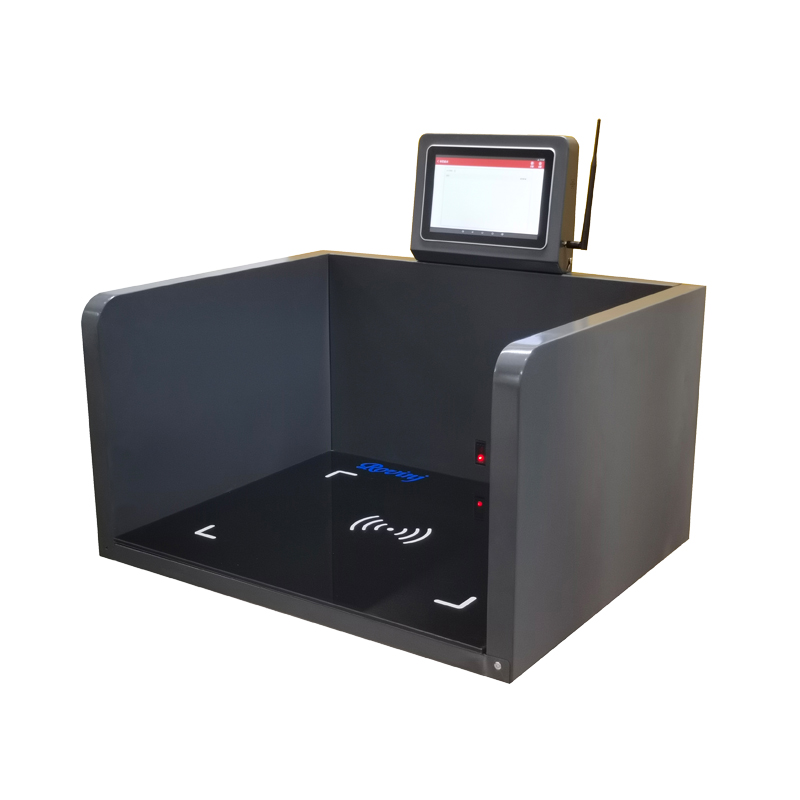

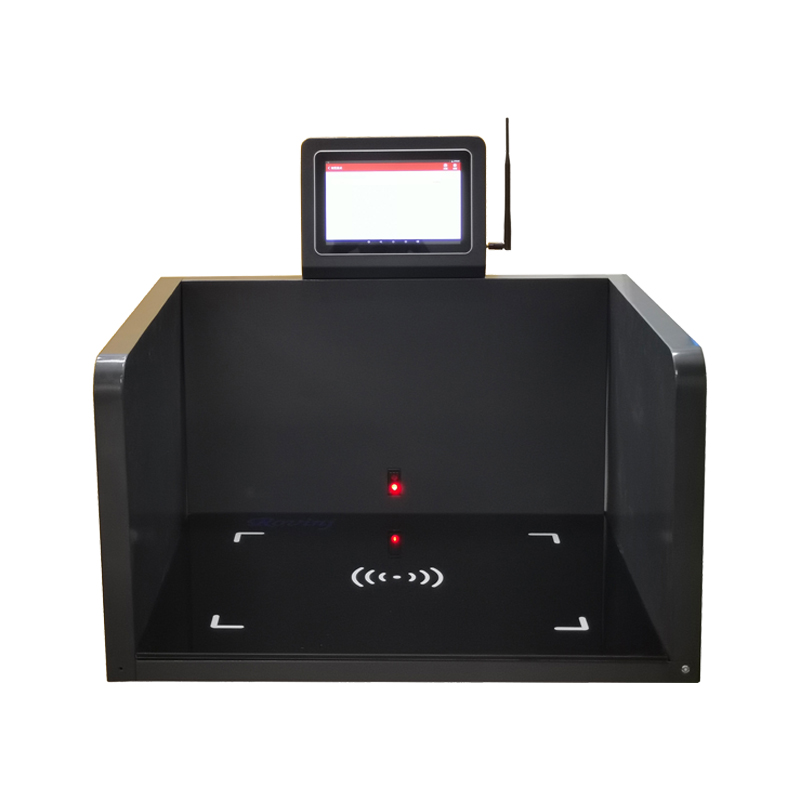

ROV-R303 RFID All-in-one Desktop is designed with independent intellectual property rights, and combined with proprietary high-efficiency signal processing algorithm. It can achieve speed reading for RFID tags while keeping high reading accuracy. It mainly applies receiving, delivery and verification of the whole box or single piece. And can also be integrated into logistics, access control system, anti-counterfeiting system, production process control and other radio frequency identification (RFID) systems.
Application：It can be integrated into logistics, access control system, anti-counterfeiting system, production process control and other radio frequency identification (RFID) systems.
* Support electronic tags of ISO18000-6B、EPC CLASS1 G2 standard；
* Support various client interfaces such as USB、RS232、TCPIP, etc.；
* Small size and platform design, which is convenient for operation；
* Secondary Development：Provide DLL and DEMO program；
Module Code | ROV-R303 |
Communication Interface | RS232/TCPIP /USB |
External Power Adapter | 12-24V 3.5A |
Size | External Size 680*590*612mmInternal Size 600*500*300mm |
Enclosure Material | Spray-paint Sheet Metal |
System | Android |
Operating Voltage | 12-24V |
Screen | 10.1 inches |
Image Resolution | 1280*800 |
Operating Temperature | -10℃ ~ +60℃ |
Operating Humidity | <95%（+25℃） |
Air Interface Protocol | EPCglobal UHF Class 1 Gen2 /ISO 18000-6C、6B |
Working Frequency | 840MHz ~ 960MHz |
Recommended Quantityof Tags | Single Package 5~10PCS，Single Box 30-50PCS |
Load Capacity | 15KG |
Output Power | 1-30dbm |
Output Power Accuracy | +/- 1db |
Output Power Flatness | +/- 0.2db |
Weight | ≥30KG |
Recommended Size ofBoxes | Single piece or small amount is recommendedSupport 400mm*400mm*400mm boxes. |
