RFID Tray Tunnel Machine

The ROV-SC401 series is an industrial-grade tray-type RFID acquisition tunnel, which is independently designed and developed by our company. It takes Radio Frequency Identification Technology as the core and combines mechanical design, multiple sensors, electromagnetic shielding, automatic control and other technologies.
It completely solves the problems such as label missed reading and the wrong serial reading in the supply chain circulation, meeting the requirements of rapid and accurate application of product circulation. At the same time, the scanning tunnel combines the warehouse management system to completely overcome the defects of barcode management, and truly realize the item-level management. And it also saves labor costs and greatly improves work efficiency.

Industry application: The product is mainly used for item-level identification, such as warehouse management of fashion, washing, alcohol, electric power industry, item-level label and box label comparison, product inventory, etc.
Product Name:RFID Tray Tunnel Machine Model:ROV-SC401 Material:Spray-paint Carbon Steel
Weight:About 630KG Size:2130 (length) × 1500 (width) × 2360 (height) Working Frequency:902.75MHz~927.25MHz

Product Brief

The ROV-SC401 series is an industrial-grade tray-type RFID acquisition tunnel, which is independently designed and developed by our company. It takes Radio Frequency Identification Technology as the core and combines mechanical design, multiple sensors, electromagnetic shielding, automatic control and other technologies.
It completely solves the problems such as label missed reading and the wrong serial reading in the supply chain circulation, meeting the requirements of rapid and accurate application of product circulation. At the same time, the scanning tunnel combines the warehouse management system to completely overcome the defects of barcode management, and truly realize the item-level management. And it also saves labor costs and greatly improves work efficiency.

Industry application: The product is mainly used for item-level identification, such as warehouse management of fashion, washing, alcohol, electric power industry, item-level label and box label comparison, product inventory, etc.

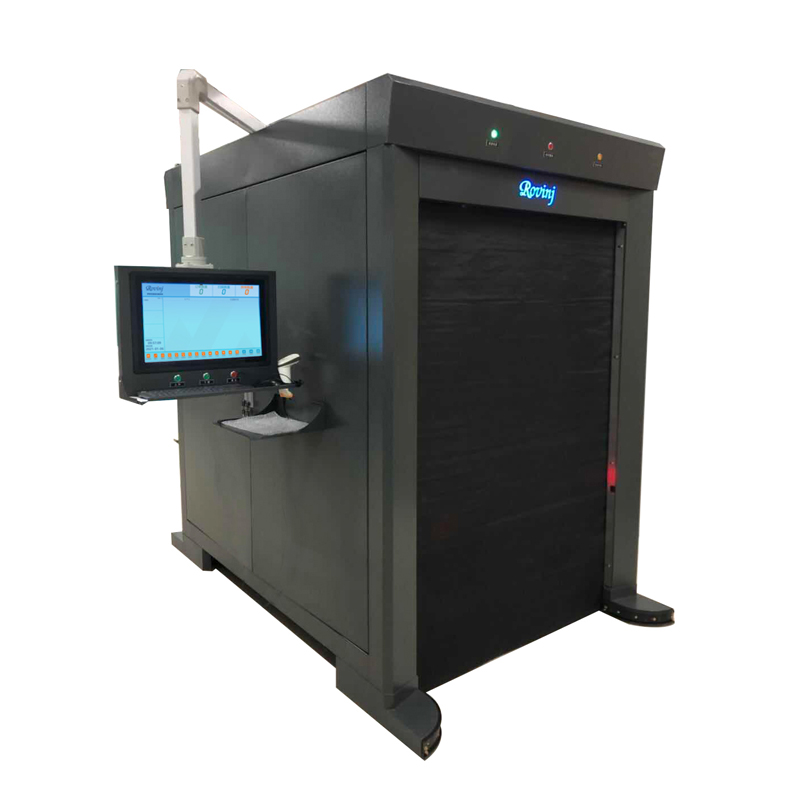

Product Image

Product Features

High identification efficiency: It can read 800+pcs of tags at a time within 3 seconds;

Professional antenna RF reflection design fully solves the problems of dead angel and tag miss-reading ;

Compact electromagnetic shielding and radio frequency optimization can eliminate the harm of RF radiation to the human body, and the tag reading accuracy reaches 100% (Depends on the reading environment and performance of tags);

The design of automatic double rolling shutters can realize automated identification for field applications without manual intervention;

Imported or domestic RFID readers can be chosen to meet the needs of different users. And we support customers to develop secondary software.

Specifications

Main   Specifications

Air Interface Protocol

EPC Global Class1 Gen2/ISO 18000-6C

RFID Frequency

902.75MHz~927.25MHz, channel spacing   500kHz

RFID Frequency Mode

Fixed Frequency / Frequency Hopping,   10 Frequency Hopping Points

Reader

Imported (Impinj-R420)

Reader Output Power

16~31±1dBm

Number of Tag Reading

800+pcs

Reading Efficiency

Within 3 seconds

Reading Mode

Motionless

Operating Mode

Interval T cycle / Continuous Operation   / External Trigger

Screen

19-inch resistive touch (Embedded Type   or Boom Type)

Programmable Controller

Imported

Electric Control System

With Domestic PLC

Industrial Computer

I5/4GB

Antenna

4 Groups of 8dbi Antennas

Photoelectric Switch

2 Groups/Imported

Load Capacity

Unlimited

Opening speed

1.2 seconds

Efficiency

Manual

Physical   Environment

Model Code

ROV-SC401

Overall Size (mm)

2130ength) × 1500 (width) × 2360 (height)

Internal Size (mm)

1800 (length) × 1160 (width) × 1830 (height)

Maximum Passable Size(mm)

1800 (length) × 1050 (width) × 1800 (height)

Automatic Rolling   Shutter

Self-weight

Weighing Module

Optional

Total Weight

About 630KG

Operating Temperature

-20℃– 60

Storage Temperature

-10~60

Operating Humidity

20 95% (Non-condensing   )

Work Voltage

220VAC(±10%50±3HZ

Power

200W

Enclosure Material

Spray-paint Carbon Steel

Shielding Performance

10~30CM
