RFID Smart tool Trolley

RFID Intelligent Tool Trolley is one of the Rovinj's self-developed RFID tool management system solutions. With RFID technology, it enables the automated management of the RFID-tagged tools which are stored in the drawers. It can greatly improve the accuracy and efficiency of tool management, and has realized the informatization management of tools and the fine control of FOD in aviation industry. The main functions include tool trolley initialization, tool lending/returning record, daily/monthly checking, etc.

Industry Application: It is mainly used in aviation, electric power, fire protection, machinery, railway and other industries to realize automatic and fast borrowing, returning, positioning, searching and maintenance of tools.
Product Name:RFID Smart tool Trolley Model:ROV-R505 Material:Spray-paint Carbon Steel
Weight:160KG Size:1330*980*600(mm) Working Frequency:902.75MHz~927.25MHz

Product Brief

RFID Intelligent Tool Trolley is one of the Rovinj's self-developed RFID tool management system solutions. With RFID technology, it enables the automated management of the RFID-tagged tools which are stored in the drawers. It can greatly improve the accuracy and efficiency of tool management, and has realized the informatization management of tools and the fine control of FOD in aviation industry. The main functions include tool trolley initialization, tool lending/returning record, daily/monthly checking, etc.

Industry Application: It is mainly used in aviation, electric power, fire protection, machinery, railway and other industries to realize automatic and fast borrowing, returning, positioning, searching and maintenance of tools.

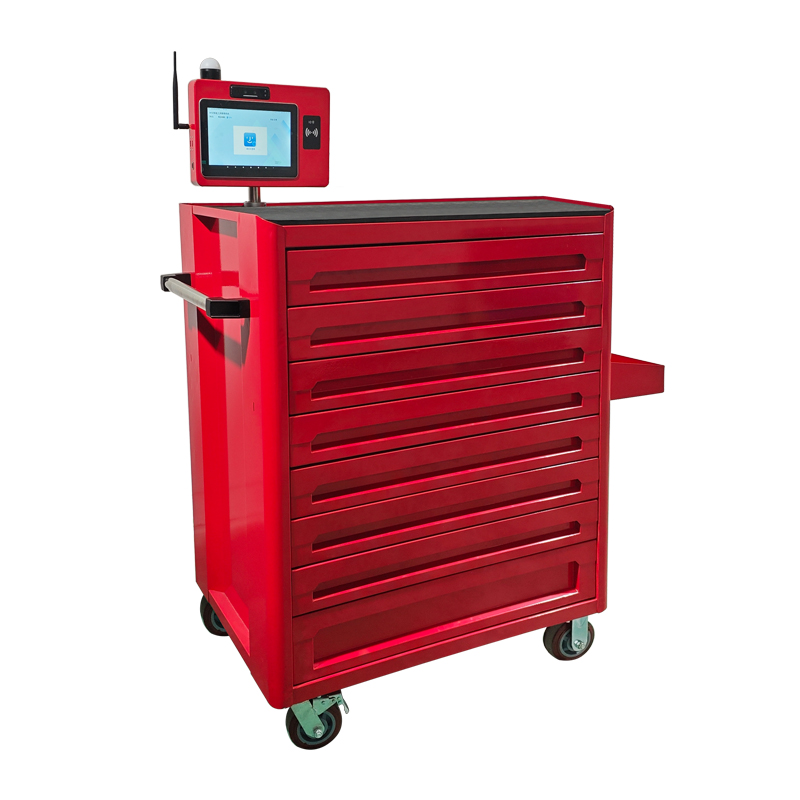

Product Image

Product Features

Fully Automated Management: Fully automated tool lending and returning record management, has simplified the processes and eliminating mistakes of manual scanning and logging. Quick! Accurate! And the system can create various reports.

One-touch Inventory: Finish daily/ monthly checking can be finished within 3 seconds.

Data Acquisition and Scientific Analysis: Data logging of tool parameters. Calibration period reminding for specific tools.

Security: If the tools are not returned in time, the tool trolley will alert and quickly lock on the relevant person.

Lost Tool Searching: When the tool is left on the plane, it can be further searched with the RFID handheld terminal.

Convenient and Intelligent: Equipped with the rechargeable battery, it can be used as a mobile line-side tool cabinet.



Specifications

Main Specifications

Model

ROV-R505

Overall (8 drawers)

Weight

About 160KG

Size (height * width * depth)

1330*980*600mm

Enclosure Material

Spray-paint Carbon Steel

Drawer (8 drawers)

Single Drawer Size

690*510mm (width*depth)

Upper Drawer Spacing

Drawer 1-7(inner height): 50mm

Lower drawer spacing

Drawer 8(inner height): 150mm

Load Bearing Capacity Per Drawer

40KG

Power Source

Current

5A

Voltage

24V

Battery

With Feedback  Capacity 10AH

Power

50W

Operating Environment

Humidity

20%~85%Non-condensation

Temperature

-20℃60℃

System

Android 5.1.1

Industrial Computer

RK3288/4 cores Frequency 1.8Ghz

Photoelectric Switch

One Group/Imported

Programmable Controller

Domestic

Electric Control System

With Domestic PLC

Screen

10.1-inch capacitive screen   1280*800 (16:9)

RAM

2G

       Storage

8G

Communication

TCP/IPWIFI4G

Shielding Distance

20~30CM

Opening Speed

1 second

Reader

ImportedImpinj-R420

Number of Tag Reading

400+pcs

Reading Efficiency

3~5 seconds

Reading Mode

Motionless
