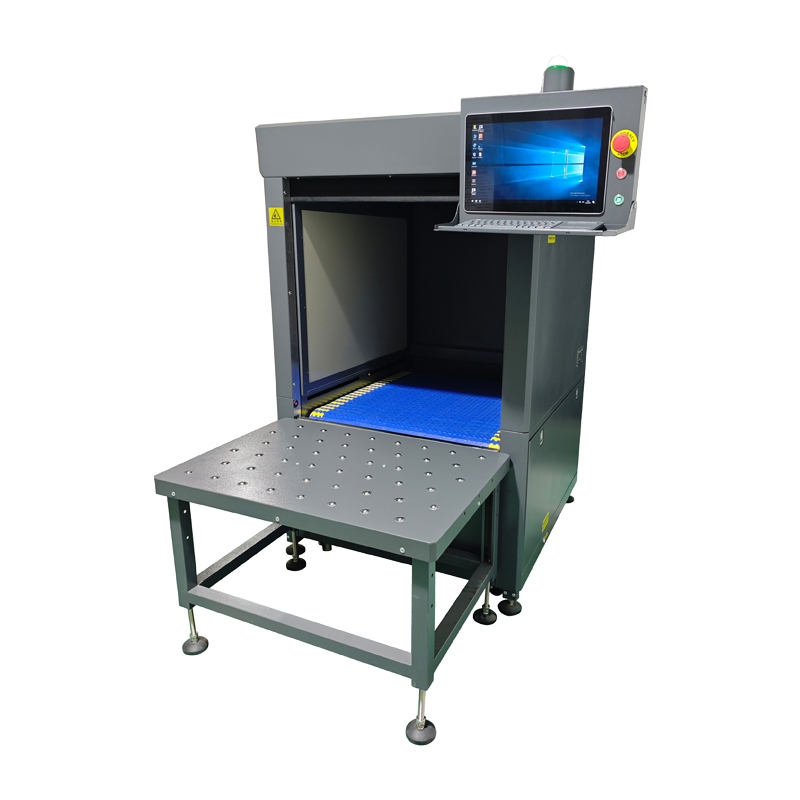

Product Name:RFID Semi-Auto Single Box Tunnel Machine | Model:ROV-R120 | Material:Spray-paint Carbon Steel |
Weight:About 240KG | Size:950 (length) × 1100 (width) × 1660 (height) | Working Frequency:902.75MHz~927.25MHz |
ROV-R120 is an industrial-grade RFID acquisition tunnel, which is independently designed and developed by our company. It takes Radio Frequency Identification Technology as the core and combines mechanical design, multiple sensors, electromagnetic shielding, automated control and other technologies. It completely solves the problems such as tag miss-reading or reading the wrong tag in the supply chain, meeting the requirement of high efficiency and accuracy of product circulation. What’s more, the tunnel combines the warehouse management system to completely overcome the shortcomings of barcode management, truly realizing the SKU automated management. And it also saves labor costs and greatly improves work efficiency.
Industry Application: The tunnel is mainly used for SKU identification, such as warehouse management of fashion, cleaning, alcohol, electric power industry, comparison of SKU tag and box label, product inventory, etc.
n High identification efficiency: It only costs 3-5 seconds to read 200+pcs of tags.
n Professional motion control and mechanical design fully solves the problem of tag miss-reading ;
n Compact electromagnetic shielding and radio frequency optimization can eliminate the harm of RF radiation to the human body, and the tag reading accuracy reaches 100% (Depends on the reading environment and performance of tags);
n Imported or domestic RFID readers can be chosen to meet the needs of different users. And we support customers to develop secondary software.
Main Performance Index | |
Air Interface Protocol | EPC Global Class1 Gen2/ISO 18000-6C |
RFID Frequency | 902.75MHz ~ 927.25MHz, Channel Spacing is 500kHz |
RFID Frequency Mode | Fixed Frequency / Frequency Hopping, 10 Frequency Hopping Points |
Reader | Domestic (Imported R2000 chip) |
Reader Output Power | 1-30±1dBm |
Conveyor Speed | Up to 40m / min |
Conveyor Load Bearing | Up to 50KG |
Efficiency | Manual |
Automatic Conveyor Belt | One Conveyor / Independent Power Control |
Material of Conveyor Belt | Leather Belt |
Screen Door | Shutter Door (Electric) |
Number of Tag Reading | 200+pcs |
Reading Efficiency | 3~5 Seconds |
Reading Mode | Motionless |
Operating Mode | Interval T Cycle / Continuous Work / External Trigger |
Screen | 15.6-inch Resistive Touch Screen, 1920*1080 |
Industrial Computer | J4125/4GB+128GB |
Photoelectric Switch | 2 Groups/Imported |
Electronic Control | With Domestic PLC |
Antenna | 4 Groups of 9dbi Antennas |
Load Capacity | 50kg |
Adjustable Speed of Conveyor | 0—40m/min |
Reversible or Not | Reversible Conveyor |
Opening Speed | 1 Second |
Dock With Production Line or Not | No |
Physical Environment | |
Model Code | ROV-R120 |
Tunnel size (mm) | 950 (length) × 1100 (width) × 1660ight) |
Ball Transfer Table Size (mm) | 1600(length) × 600 (width) × 700 (height) |
Maximum Passable Size of Box (mm) | 700(length) × 700 (width) × 700 (height) |
Total Weight | About 240KG |
Operating Temperature | -20℃– 60℃ |
Storage Temperature | -10℃~60℃ |
Operating Humidity | 20-95% (non-condensing) |
Work Voltage | 220VAC(±10%)50±3HZ |
Power | 350W |
Enclosure Material | Spray-paint Carbon Steel |
Shielding Performance | 5~10CM |
