| Product Name：RFID Self-Checkout Counter | Model：ROV-R1005B | Material：Spray-paint Carbon Steel |
| Weight：110KG | Size：650 × 500 × 1580 (Width × Depth × Height, ±10 mm) | Working Frequency：860 MHz–960 MHz (frequency band customizable upon request) |

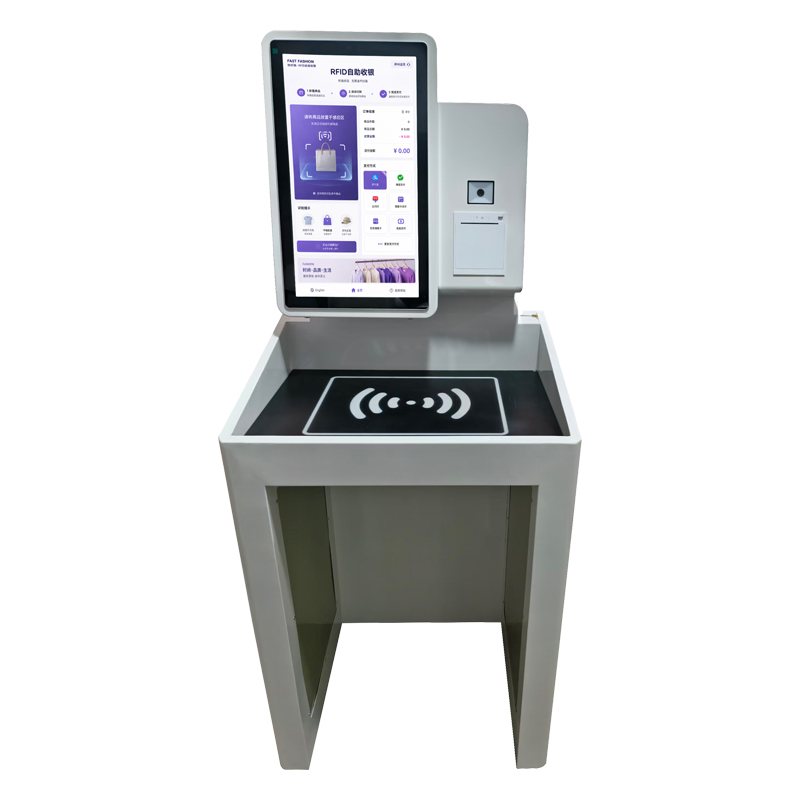

The ROV-R1005B self-checkout counter is a high-performance RFID rapid self-checkout device derived from the RFID smart store solution. Designed entirely by Rovini Technology with fully independent intellectual property rights, it adopts proprietary high-efficiency signal processing algorithms to enable fast bulk reading of electronic tags, code scanning and checkout.Customers only need to place purchased goods into the scanning basket of the self-checkout counter; the system will automatically display the item details and prices on the screen. After selecting a payment method, customers simply present their mobile payment QR code at the scanning port to complete bulk payment settlement, and a consumption receipt will be printed automatically.
Industry Application: It is mainly applied to payment and checkout scenarios such as smart stores and unmanned supermarkets.
◆Enable intelligent, self-service and unattended checkout and settlement.
◆Support multi-tag reading & writing, rapidly identify commodity information in batches, greatly improving checkout efficiency.
◆Equipped with a 21.5-inch high-definition touch interactive screen; data transmission is available via Ethernet port.
◆Stylish and exquisite appearance with easy operation. Commodities will be automatically identified once placed inside the item basket.
Main Specification | |
Product Model | ROV-R1005B |
System Configuration | |
Operating System | Android 14.0 |
CPU | Rockchip RK3576 Quad-core Cortex-A72 + Quad-core Cortex-A53, clocked up to 2.2GHz |
Storage Configuration | 4G DDR4+64G eMMC |
Screen | 21.5-inch capacitive touchscreen |
Resolution | 1920x1080 |
Aspect Ratio | 16：9 |
Connectivity | Wired Network/LAN: 10/100/1000 Mbps adaptive Ethernet Wireless Network/Wi-Fi: Supports 2.4 GHz; supports Wi-Fi 802.11b/g/n/ac protocols External USB Ports: 2 USB ports |
RFID Configuration | |
Chip | IMPINJ E710 |
Frequency range | 860 MHz–960 MHz (frequency band customizable upon request) |
Supported protocols | EPC C1 Gen2 / ISO 18000-6C |
Read speed | >300 tags/second (peak) |
Receipt printer | |
Printing Method | Thermal line printing |
Resolution | 203 dpi (8 dots/mm) |
Effective Print Width | 72 mm (576 dots) |
Paper Width | Max. 80 mm |
Roll Diameter | Max. 80 mm |
Barcode scanner | |
Barcode Symbology Recognition | 1D、2D |
Physical parameters | |
Overall dimensions (mm) | 650 × 500 × 1580 (Width × Depth × Height, ±10 mm) |
Scanning platform dimensions (mm) | 650 × 420 (Width × Depth, ±10 mm) |
Power supply | AC 220V, 50Hz |
Power consumption | 150W (Max.) |
Operating temperature | -10 to 60°C |
Operating humidity | 10%–80% relative humidity, non-condensing |
